12,500.00৳

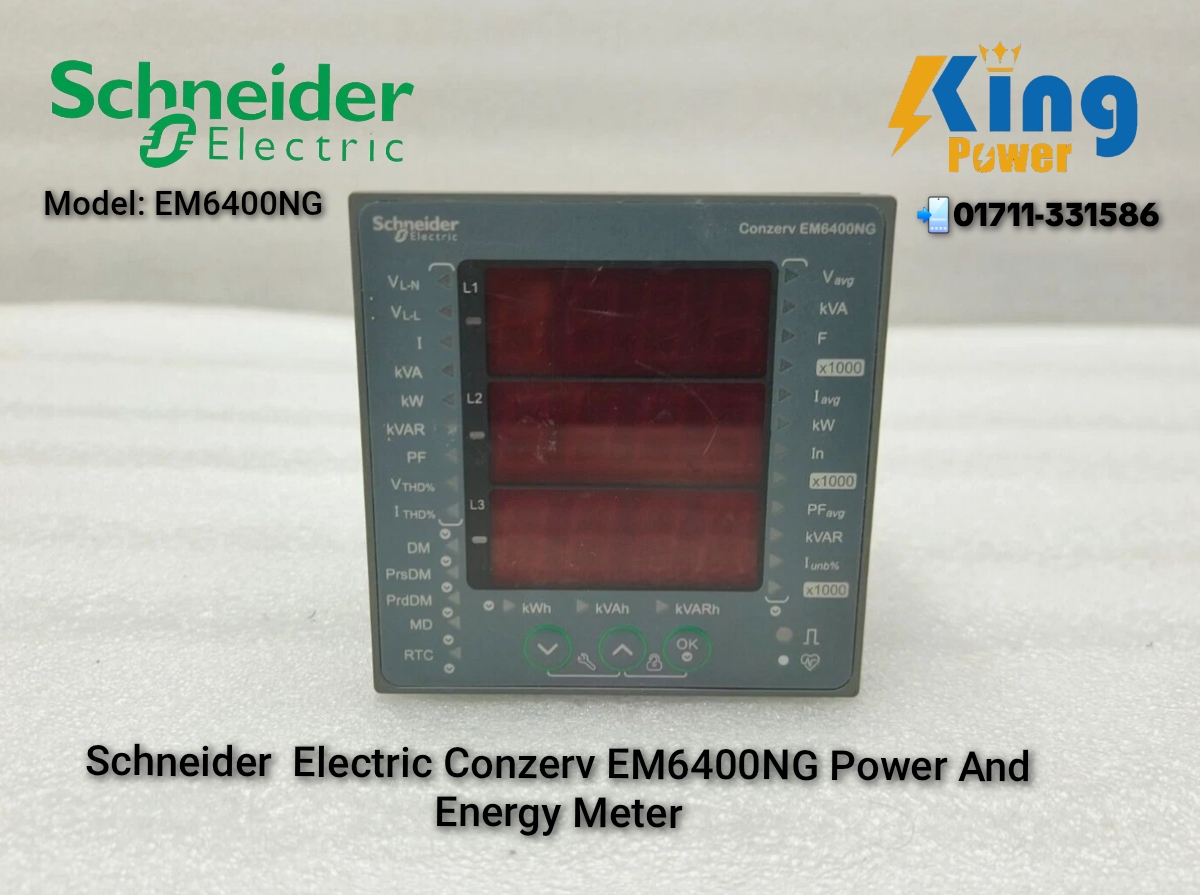

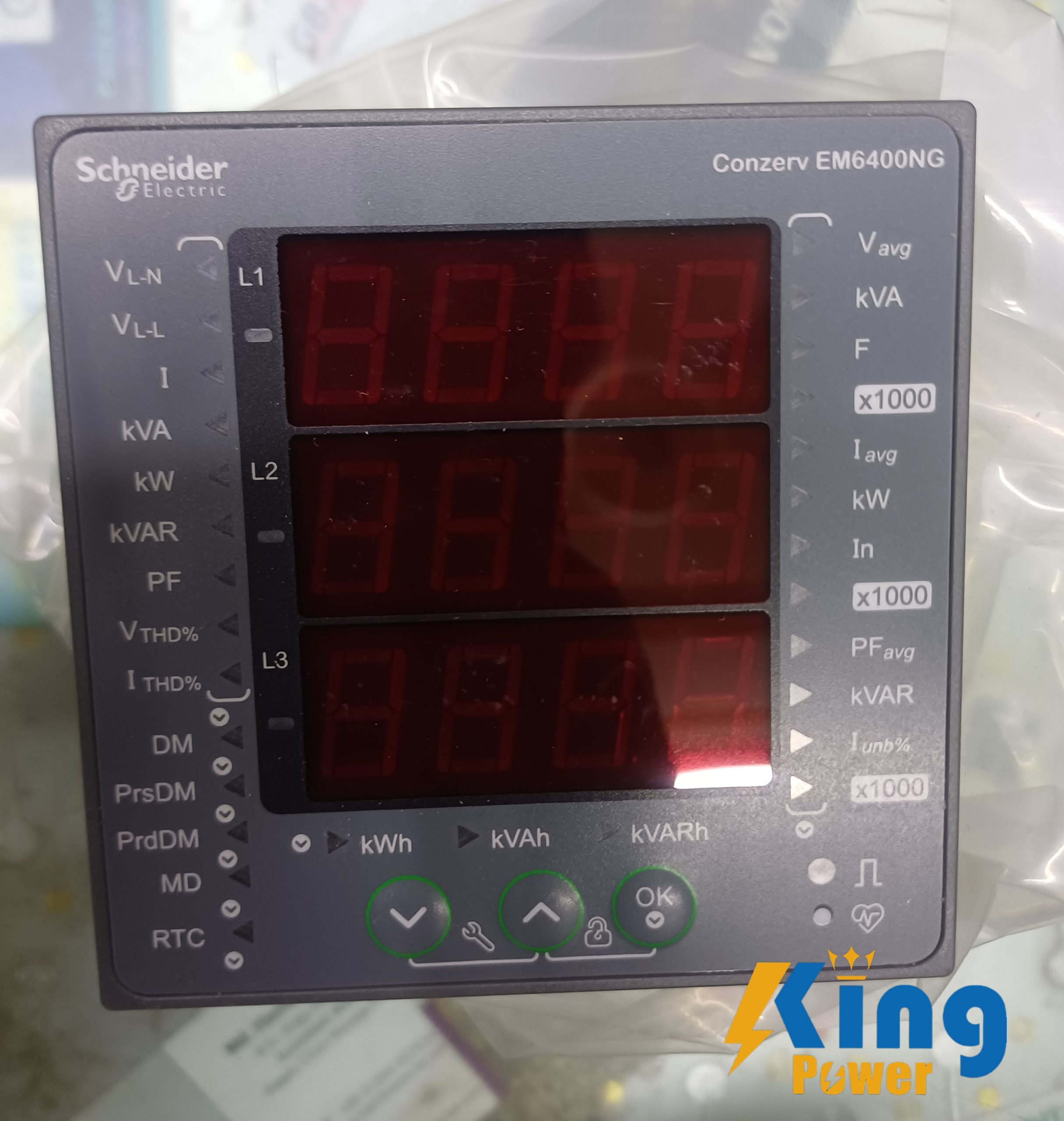

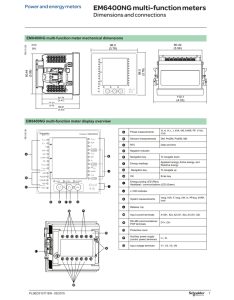

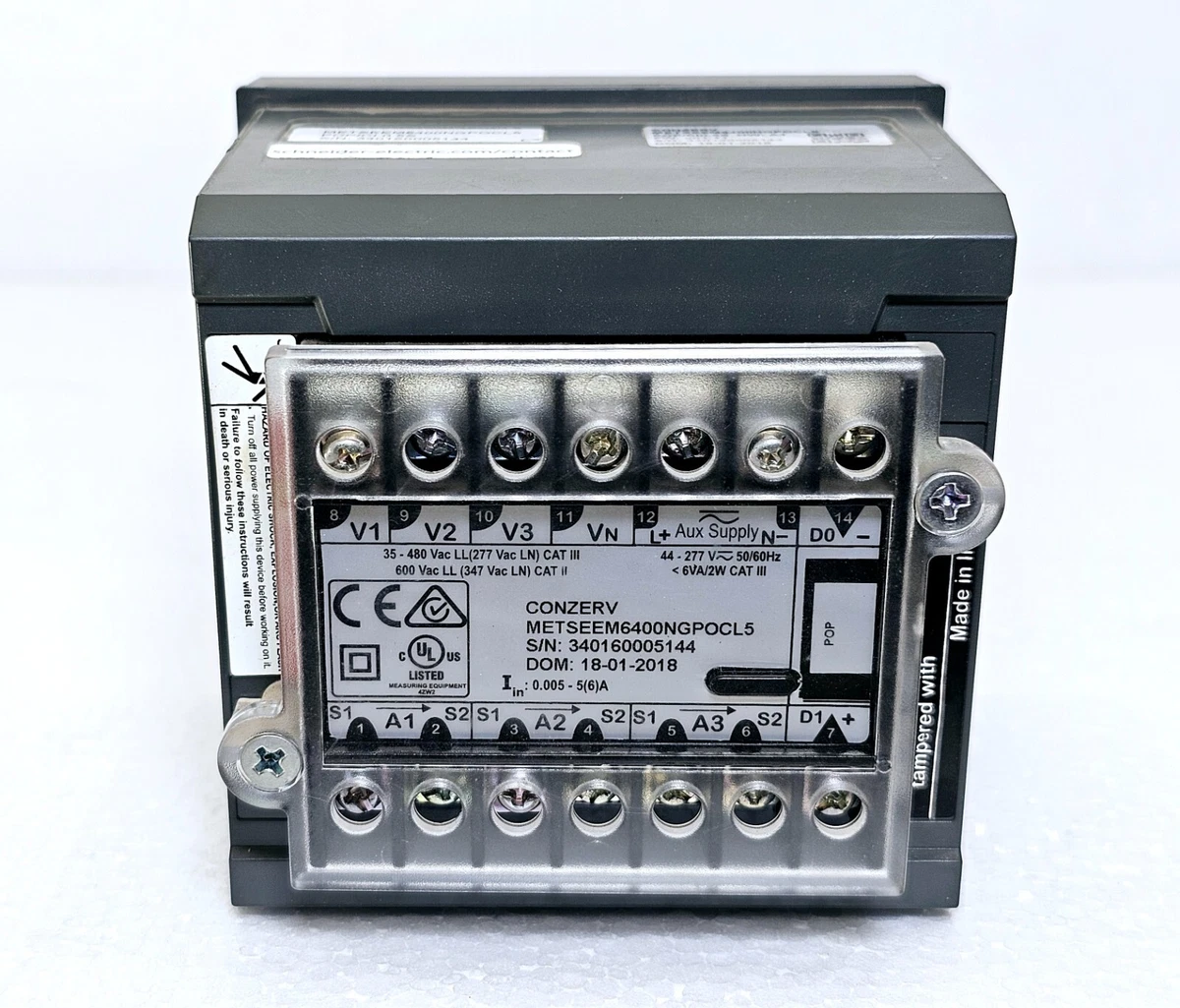

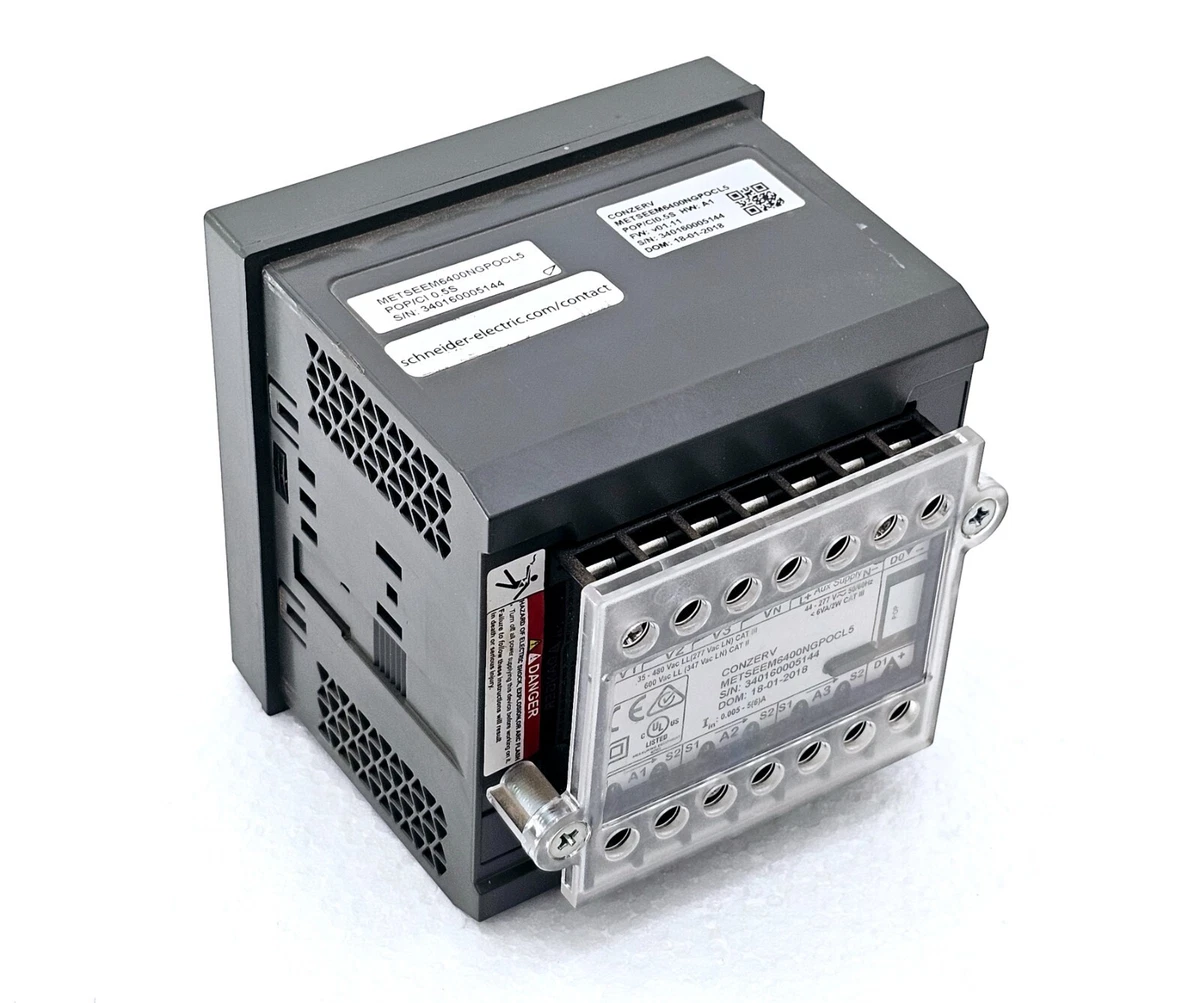

EM6400NG provide measurements of THD and individual harmonics (complying with IEC61557-12) helps in monitoring the power quality. It enables the users to capture abnormalities in the system with date and time stamp. Further to facilitate the readings, the EM6400NG has a large LED display for simultaneous monitoring of multiple electrical parameters. Cyber security features to enable safe and secure Digital India. Providing Class 0.5S active energy accuracy per IEC 62053-22 standard, the meter will measure active, reactive energy and quality. This meter can be used in billing and load management. Communication protocol is Modbus RTU with RS485 port support. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, multi parameter measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 90 mm in depth ; for 600 g.
Compact meter with maximum of 73 mm depth, connectable up to 480 %/. 10% AC Volts L.L without voltage transformers for installations compliant with measurement category III, and double insulated. b Easy to operate: Test LED at the front panel can be used for test and calibration of the meter at site or laboratory.
